Machine Vision Inspection Scheme for Hardware Shenzhen SPOTECK Technology Co., Ltd. SPOTECK has been focusing on machine vision inspection for 13 years, with numerous detection cases.
Welcome to Free Program, Consulting Hotline: 130 7781 5846
1. Contents and requirements of testing
Measure workpiece area:
Appearance Detection of Whole Sample with Length 2mm*Width 2.48mm*Height 3.08mm
Content of detection:
1: Frontal inspection of each dimension
2: Measure the dimensions on the left side
3:Positive detection of blockage and scratch
Note: The above detection items need to be clearly visible under the image to detect.
Detection efficiency: 300-500 pieces per minute (according to sample feeding speed).
Division of work: Subdivide the detection steps according to the detection content.
II. Equipment Composition and Major Institutions
Overall Composition: Dimension: 900*800*1850 mm
Model: SP_302C
1:SPOTECK Visual Detection Software
2: industrial computer
3: display 19 inches
4: Industrial cameras: 3 sets, front and side measurement of each size. Measure the dimensions on the left side. Detection of blockage and scratch on the front side.
5: Industrial Lens: 3 FA Industrial Cameras
6: professional glass tray
7: solenoid valve
8: reducer
9: vibration cabinet
10: Feeding equipment (Vibrating disc, Direct Vibration, Controller).

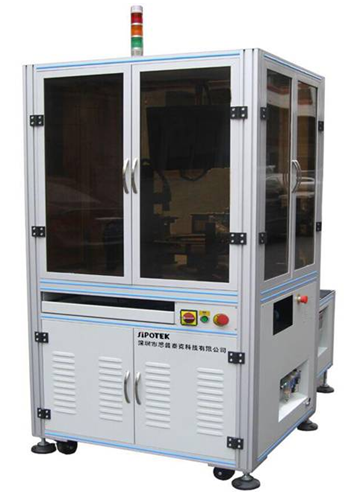

II.1: 3-D Stereogram of Equipment Appearance
3:1 Frontal Face Detection Method

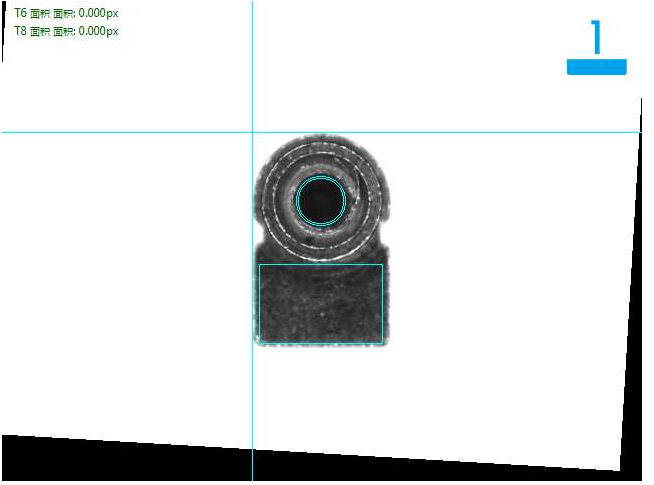

The original picture of positive detection effect:
3:1 Positive Detection Method
Analysis Chart of Good Products for Frontal Testing: OK
3:2 Side Face Detection Method

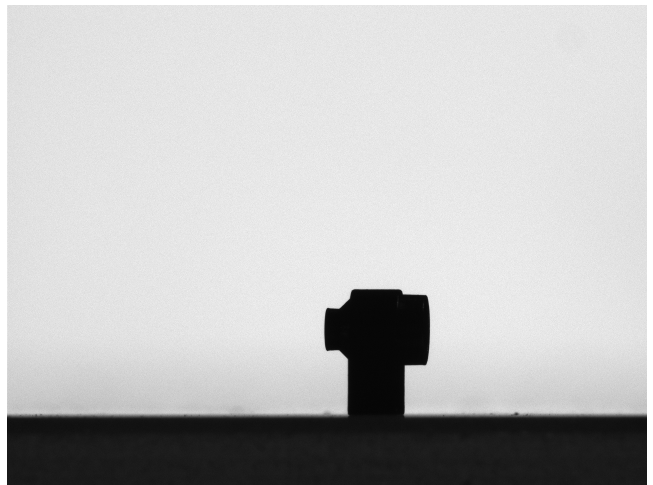

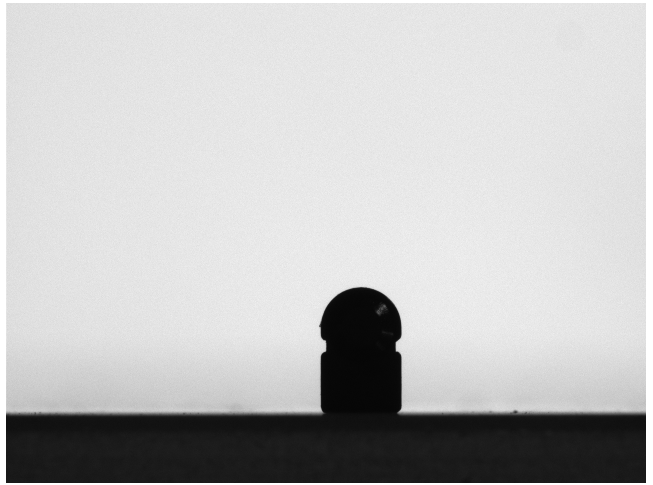

The original image of side detection effect:
3:2 Side Detection Method

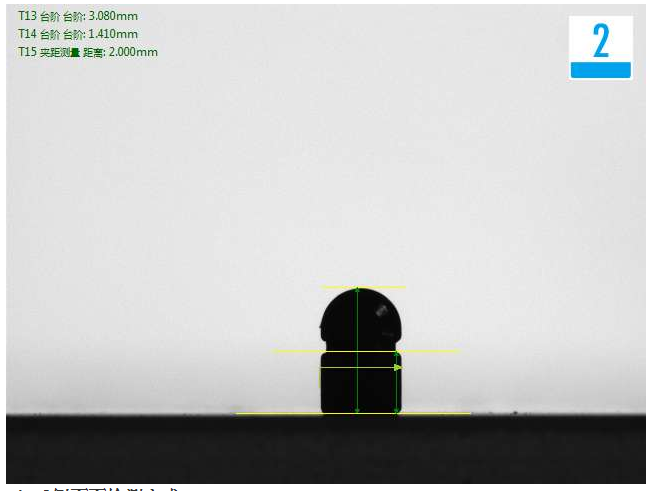

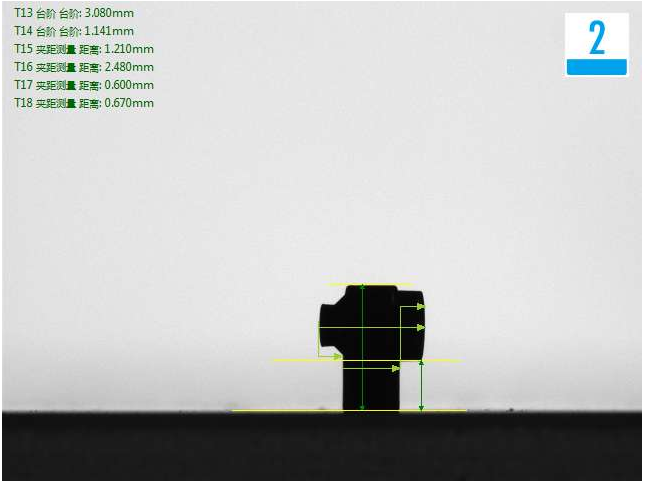

Analysis Chart of Fine Products for Side Detection: OK
3:2 Positive Detection Method

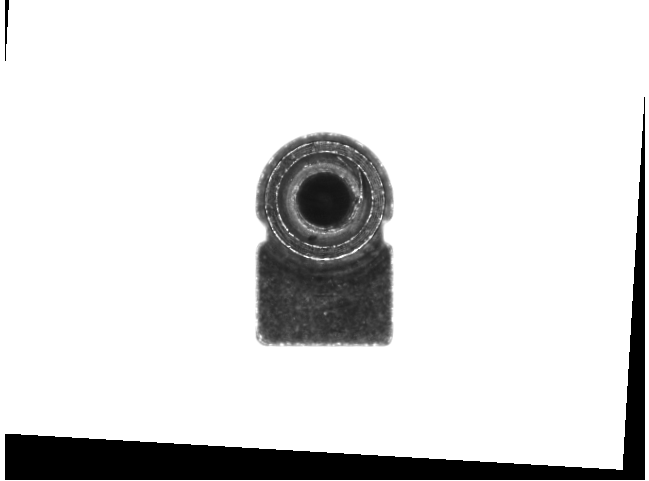

The original picture of positive detection effect:
3:2 Positive Detection Method
Analysis Chart of Good Products for Frontal Testing: OK
IV. System Installation Requirements:
Inspection space for equipment placement: Separately installing SP visual inspection system at the pipeline side, it is necessary to ensure that there is enough space to install the equipment.
Ambient temperature: 0-50 degrees Celsius;
Air humidity: below 90% RH;
Electronic jamming: Provide equipment with less electronic jamming.
Power supply: 220V, 50Hz AC, less than 1KVA power consumption, air pressure 0.35-0.7MPa
Above is the machine vision inspection scheme. For more information, please consult SPOTECK: 130 7781 5846.
