Machine Vision Inspection Scheme for Hardware Round Cap Shenzhen SPOTECK Technologies Co., Ltd. uuuuuuuu
1. Contents and requirements of testing
Measure workpiece area:
Appearance Detection of Whole Sample with Height of 8.5mm*Width of 10.3mm
Content of detection:
1: Bottom detection surface groove
2: Side Detection Height and Width Dimensions
3: Top detection of surface scratches and bruises
4: Oblique plane to detect the presence or absence of internal screw teeth
Note: The above detection items need to be clearly visible under the image to detect.
Detection efficiency: 200-400 pieces per minute (according to sample feeding speed).
Division of work: Subdivide the detection steps according to the detection content.
II. Equipment Composition and Major Institutions
Overall Composition: Dimension: 900*800*1850 mm
Model: SP_302C
1:SPOTECK Visual Detection Software
2: industrial computer
3: display 19 inches
4: Industrial camera: 4 sets, bottom detection surface groove. Side measurement of height and width. Top detection surface appearance scratches, bruises. Detection of spiral teeth on inclined surface
5: Industrial Lens: Four FA Industrial Cameras
6: professional glass tray
7: solenoid valve
8: reducer
9: vibration cabinet
10: Feeding Equipment (Vibrating Disk, Direct Vibration, Controller)

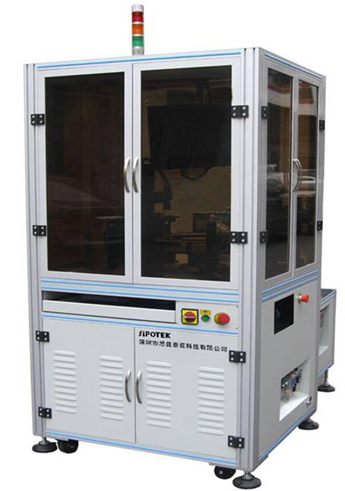

II.1: 3-D Stereogram of Equipment Appearance
3:1 Bottom Surface Detection Method

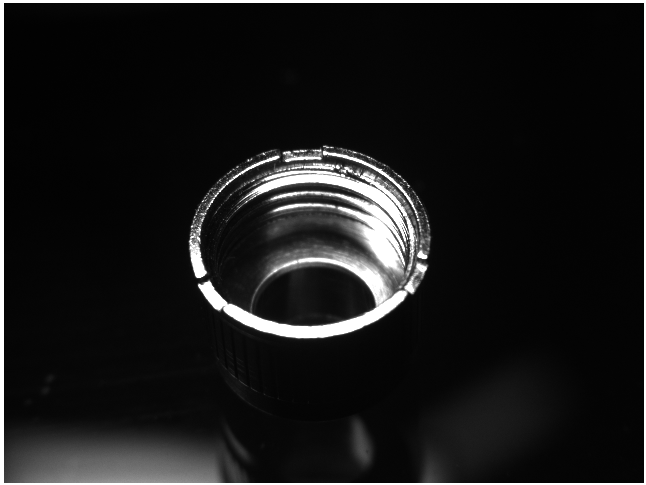

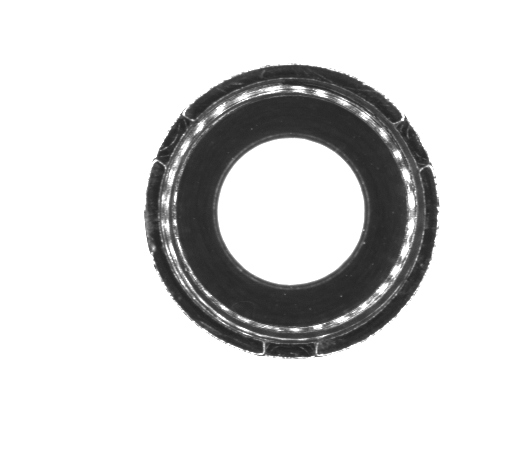

Bottom detection effect original picture:
3:1 Bottom Detection Method

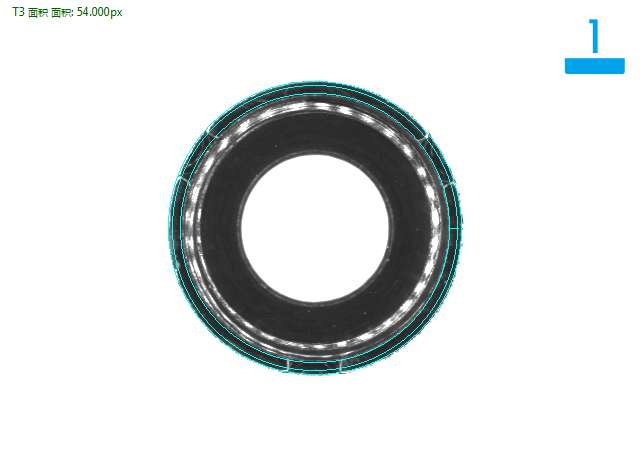

Bottom Test Fine Product Analysis Chart: OK
3:1 Bottom Detection Method

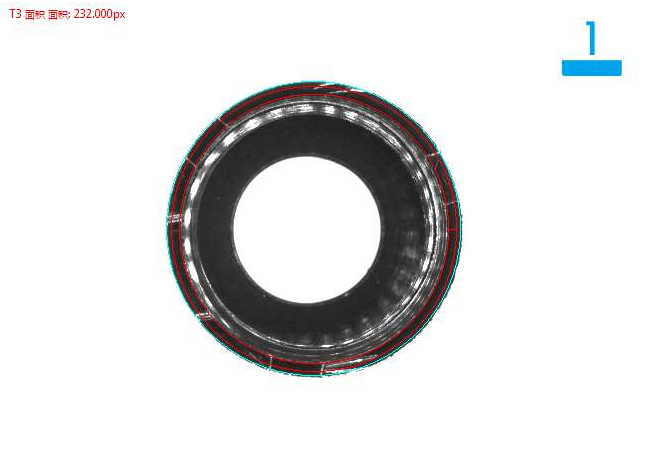

Bottom detection of highly undesirable product analysis chart:NG
3:2 Side Detection Method

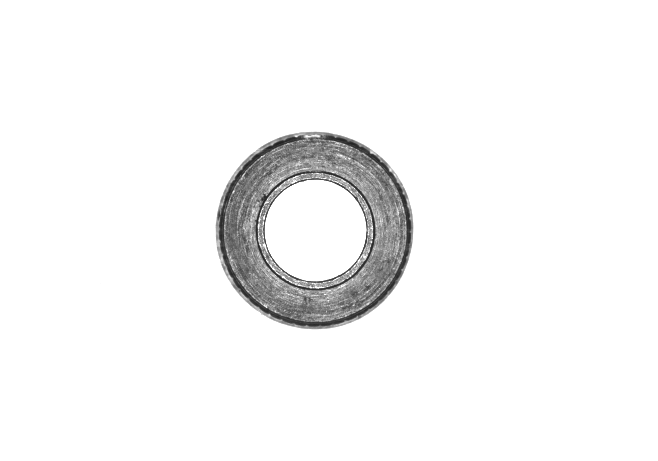

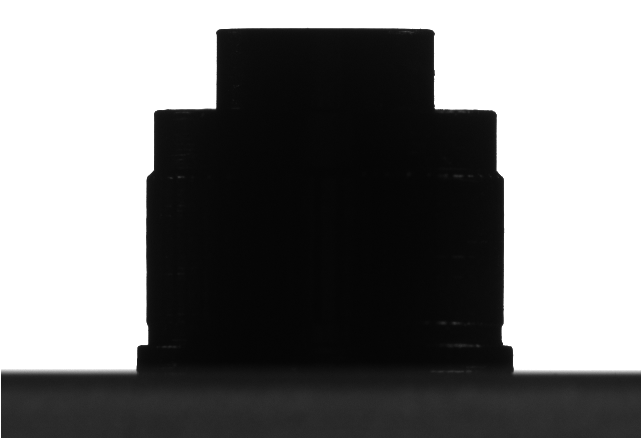

The original image of side detection effect:
3:2 Side Detection Method

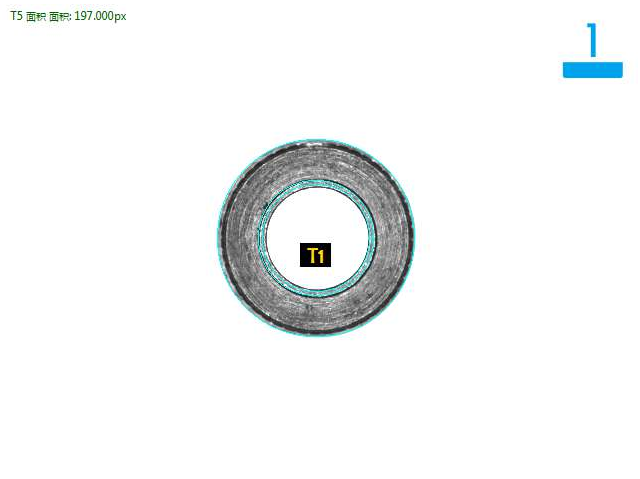

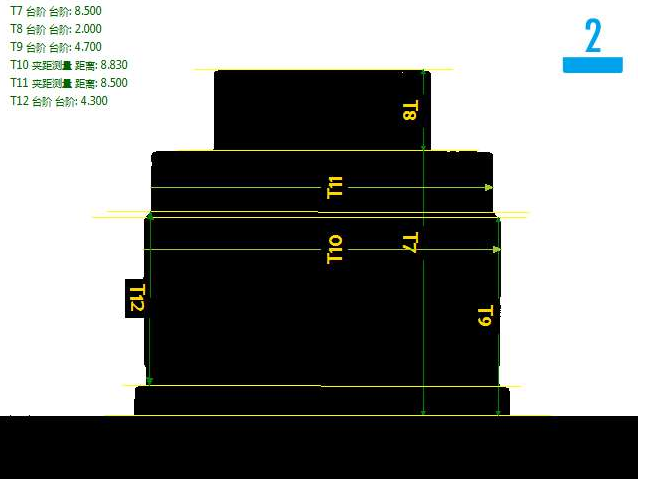

Analysis Chart of Fine Products for Side Detection: OK
3:3 Top Detection Method
Top detection effect original picture:
3:3 Top Detection Method
Top test product analysis chart: OK

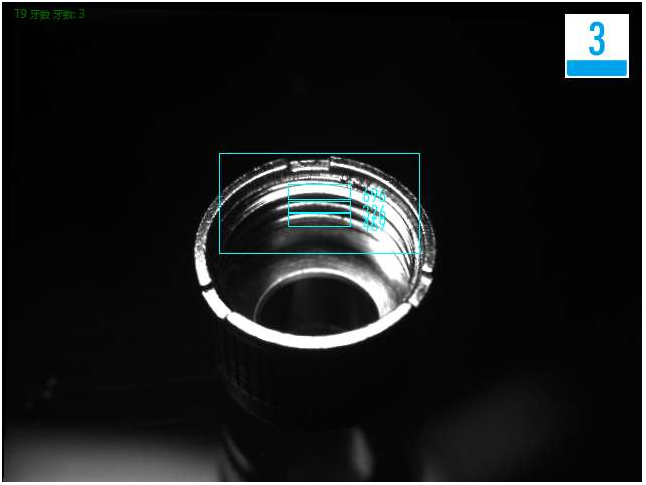

3:4 Slope Detection Method
The original image of slope detection effect:
3:4 Slope Detection Method
Analysis Chart of Excellent Products for Slope Inspection: OK
IV. System Installation Requirements:
Inspection space for equipment placement: Separately installing SP visual inspection system at the pipeline side, it is necessary to ensure that there is enough space to install the equipment.
Ambient temperature: 0-50 degrees Celsius;
Air humidity: below 90% RH;
Electronic jamming: Provide equipment with less electronic jamming.
Power supply: 220V, 50Hz AC, less than 1KVA power consumption, air pressure 0.35-0.7MPa
Above is the hardware round cap machine vision inspection scheme For more information, please consult SPOTECK, consult hotline 133 1692 9889
