Small Screw Machine Vision Inspection Scheme Shenzhen Sputek Technology Co., Ltd. SPOTECK has been focusing on machine vision inspection for 13 years.
Wide application field, there are many test cases, welcome to consult: 133 1692 9889
1. Contents and requirements of testing
Measure workpiece area:
Sample Detection of 2.95*5.92mm Whole Height
Content of detection:
1: Detection of cross head and blockage at bottom
2: Lateral measurement of total height and external diameter of teeth
Note: The above detection items need to be clearly visible under the image to detect.
Detection efficiency: 400-600 pieces per minute (according to sample feeding speed).
Division of work: Subdivide the detection steps according to the detection content.
II. Equipment Composition and Major Institutions
Overall Composition: Dimension: 900*800*1850 mm
Model: SP_302C
1:SPOTECK Visual Detection Software
2: industrial computer
3: display 19 inches
4: Industrial camera: 2 sets, bottom check whether there is cross head, whether blocking. The total height and external diameter of teeth were measured by lateral examination.
5: Industrial Lens: Two FA Industrial Cameras
6: professional glass tray
7: solenoid valve
8: reducer
9: vibration cabinet
10: Feeding equipment (Vibrating disc, Direct Vibration, Controller).

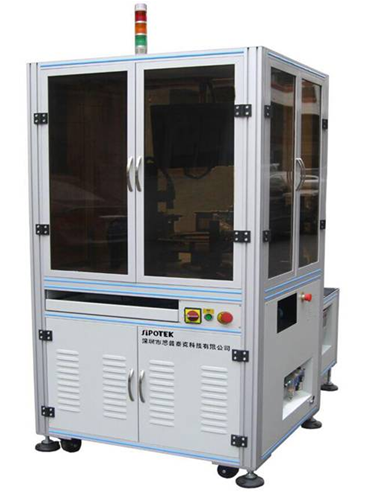

II.1: 3-D Stereogram of Equipment Appearance
3:1 Bottom Detection Method

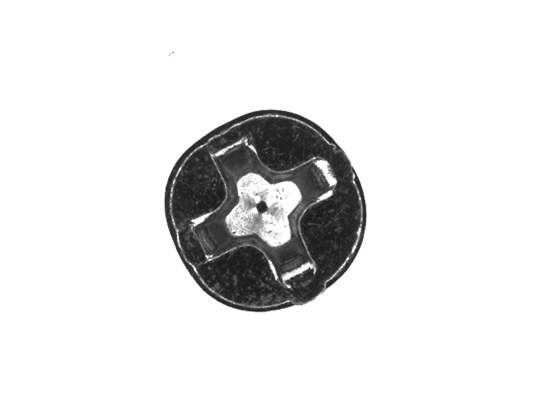

Bottom detection effect original picture:
3:1 Bottom Detection Method

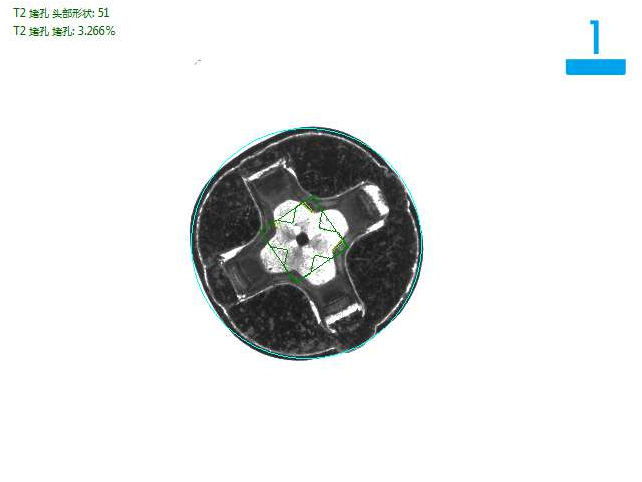

Bottom Test Fine Product Analysis Chart: OK
3:1 Bottom Detection Method

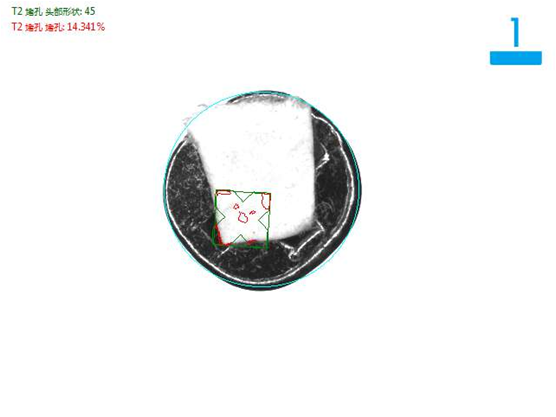

Bottom Detection Blockage Bad Product Analysis Chart:NG
3:2 Side Detection Method

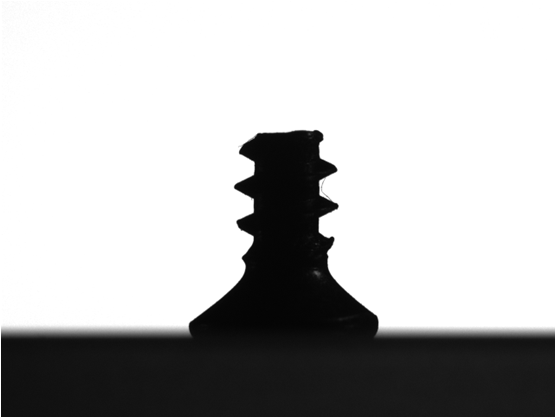

The original image of side detection effect:
3:2 Side Detection Method

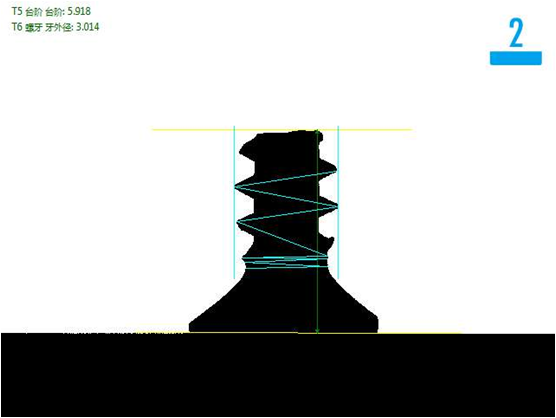

Analysis Chart of Fine Products for Side Detection: OK
3:2 Side Detection Method

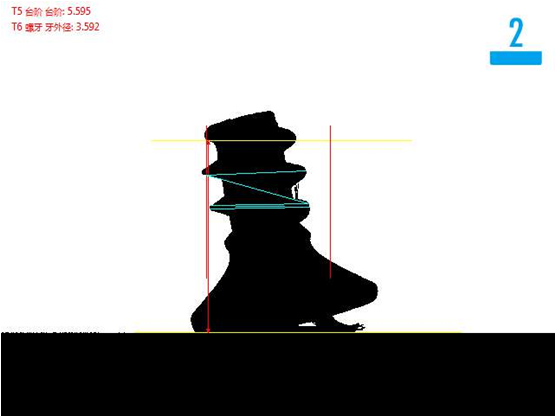

Analysis Chart of Highly Bad Products for Side Detection: NG
IV. System Installation Requirements:
Inspection space for equipment placement: Separately installing SP visual inspection system at the pipeline side, it is necessary to ensure that there is enough space to install the equipment.
Ambient temperature: 0-50 degrees Celsius;
Air humidity: below 90% RH;
Electronic jamming: Provide equipment with less electronic jamming.
Power supply: 220V, 50Hz AC, less than 1KVA power consumption
Above is the small screw machine vision inspection scheme, please consult SPOTECK: 130 7781 5846 for details.
