Machine Vision Inspection Scheme for Winding Frame Shenzhen SPOTECK Technology Co., Ltd. uuuuuuuuu
1. Contents and requirements of testing
Measure workpiece area:

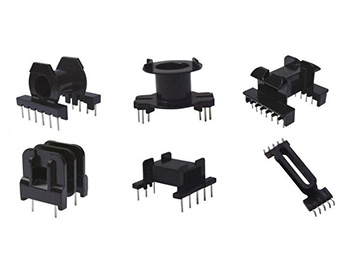

Skeleton frontal area and side appearance detection of 5-29 mm in diameter
Content of detection:
1: The damaged surface can be detected on both sides of the sample, but can not be detected at other locations.
2: Foot oxidation, visible and detectable on the outside, but not on the inside.
3. Deviation of feet, absence of feet and detection of foreign bodies between feet.
Note: The above detection items need to be clearly visible under the image to detect.
Detection efficiency: 100-600 pieces per minute (according to sample feeding speed).
Division of work: Subdivide the detection steps according to the detection content.
II. Equipment Composition and Major Institutions
Overall Composition: Dimension: 900*800*1850 mm
Model: SP_302C
1:SPOTECK Visual Detection Software
2: industrial computer
3: display 19 inches
4: Industrial cameras: 6 sets, respectively, top detection foot deviation, oxidation, left part defect, right part defect
Side backlight detects foot crooked, bottom detects oxidation, foot missing, and bottom detects foreign body between feet.
5: Industrial Lens: 6 FA Industrial Cameras
6: professional glass tray
7: solenoid valve
8: reducer
9: vibration cabinet
10: Feeding equipment (Vibrating disc, Direct Vibration, Controller).

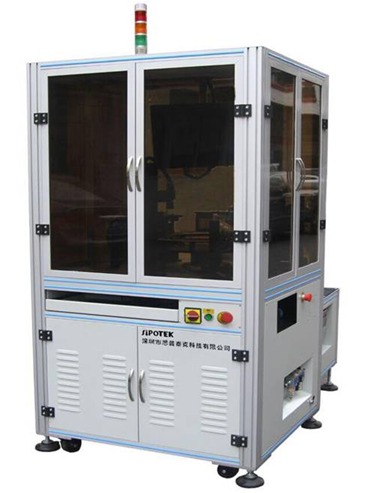

II.1: 3-D Stereogram of Equipment Appearance
3:1 Bottom Detection Method

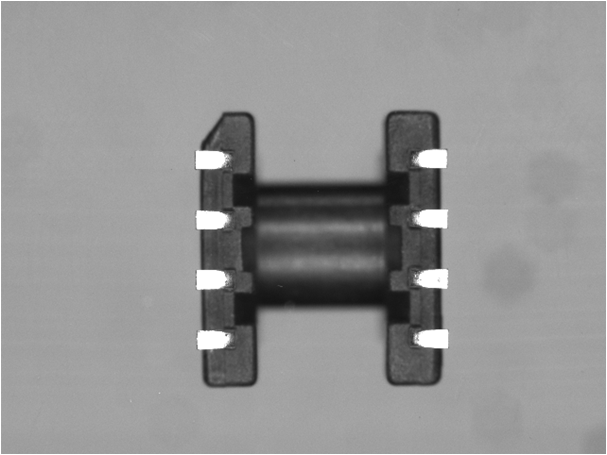

Bottom detection effect original picture:
3:1 Bottom Detection Method

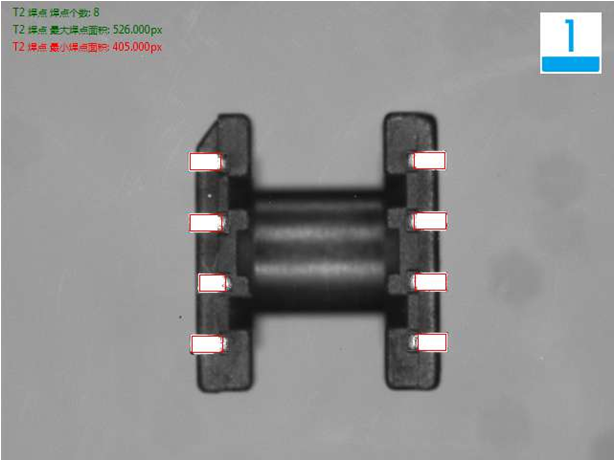

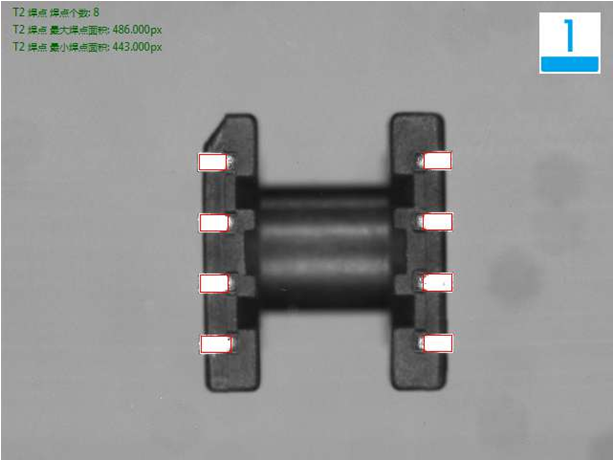

Bottom test product effect analysis chart: OK

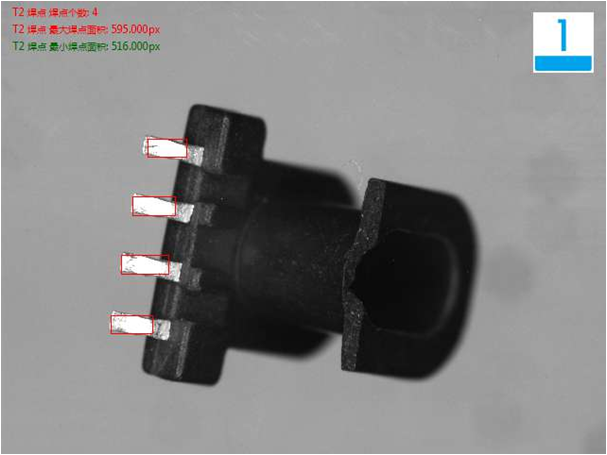

3:1 Bottom Detection Method

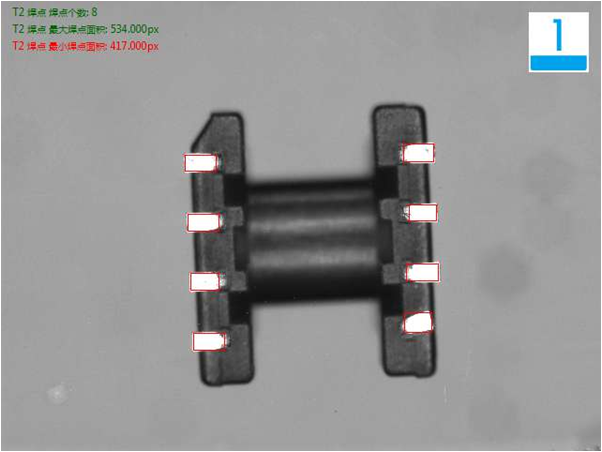

Bottom foot oxidation defective product analysis chart:NG
3:1 Bottom Detection Method
Bottom foot defective product analysis chart:NG
3:1 Bottom Detection Method
Bottom foot detection foot defect analysis chart:NG
3:2 Side Detection Method
Side view original image:
3:2 Side Detection Method
Analysis Chart of Fine Products for Side Detection: OK
3:2 Side Detection Method
Analysis of defective products with damaged side detection skeleton:NG
3:3 Side Backlight Detection Method

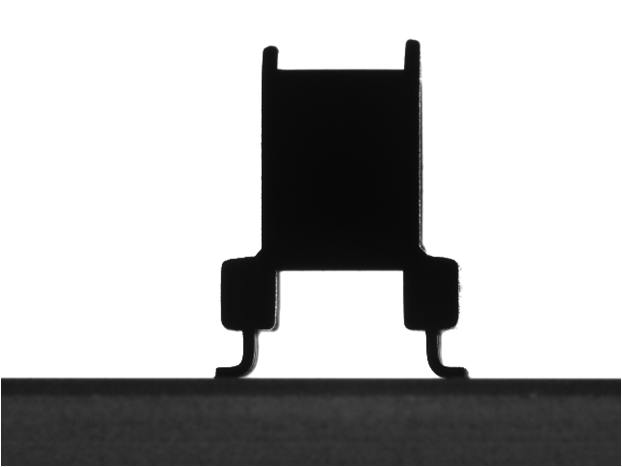

Side backlight original picture:
3:3 Side Backlight Detection Method

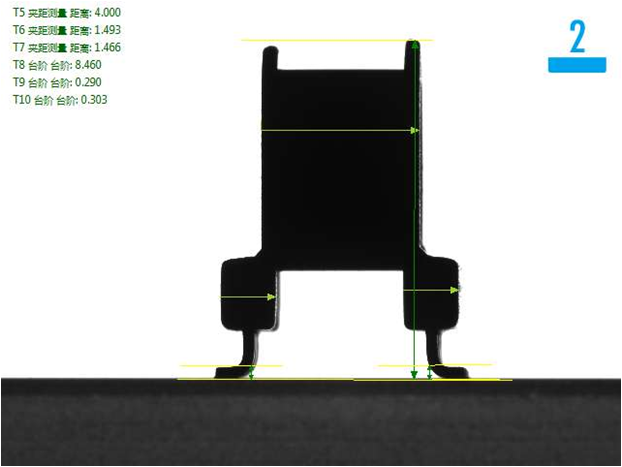

Side Backlight Analysis Chart: OK
3:3 Side Backlight Detection Method

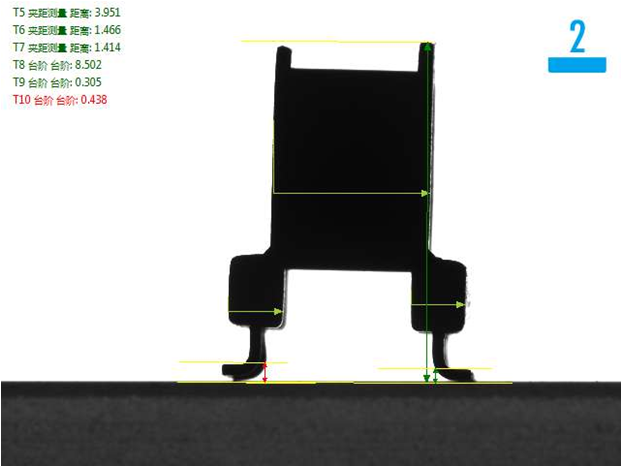

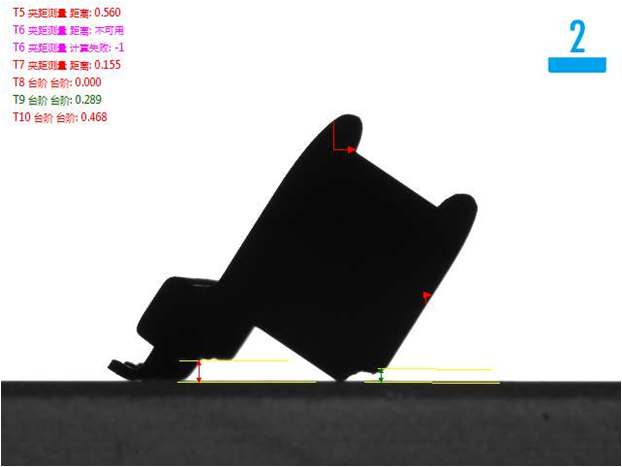

Side Backlight Bad Product Analysis Chart: NG
IV. System Installation Requirements:
Inspection space for equipment placement: Separately installing SP visual inspection system at the pipeline side, it is necessary to ensure that there is enough space to install the equipment.
Ambient temperature: 0-50 degrees Celsius;
Air humidity: below 90% RH;
Electronic jamming: Provide equipment with less electronic jamming.
Power supply: 220V, 50Hz AC, less than 1KVA power consumption
Above is the machine vision inspection scheme for winding skeleton. Please consult Spotek https://www.jjtfmm.com/consulting hotline 130 7781 5846 for details.
