Machine Vision Inspection Scheme for Ring Magnet Shenzhen SPOTECK Technology Co., Ltd. uuuuuuuuu
1. Contents and requirements of testing
Measure workpiece area:

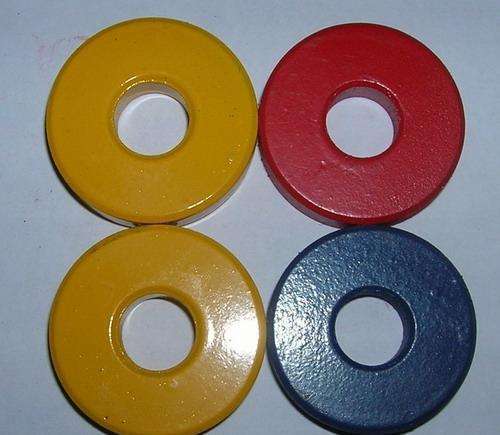

Appearance and Dimension Detection of Samples with Diameter 5.35 mm* and Height 3.9 mm
Content of detection:
1: Bottom Positive Detection Appearance
2: Side Backlight Detection Appearance
3: Top Positive Detection Appearance
4: Side Backlight Detection Appearance
Note: The above detection items need to be clearly visible under the image to detect.
Detection efficiency: 300-400 pieces per minute (according to sample feeding speed).
Division of work: Subdivide the detection steps according to the detection content.
II. Equipment Composition and Major Institutions
Overall Composition: Dimension: 900*800*1850 mm
Model: SP_T300
1:SPOTECK Visual Detection Software
2: industrial computer
3: display 19 inches
4: Industrial cameras: 4 sets of 1 Top positive light, 1 bottom positive light, 1 side positive light and 1 top back light
5: Industrial lens: 2 sets of FA industrial lens and 2 sets of telecentric lens with fixed focus
6: professional glass tray
7: solenoid valve
8: reducer
9: vibration cabinet
10: Feeding equipment (Vibrating disc, Direct Vibration, Controller).
11:Discharging equipment (belt discharging)

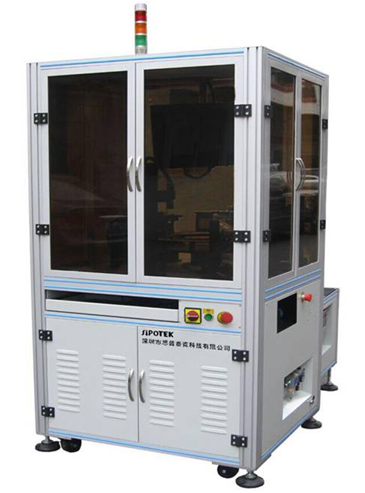

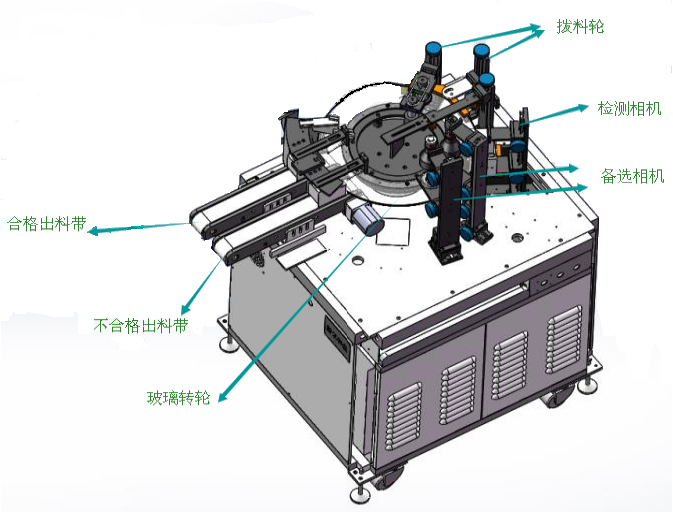

II.1: 3-D Stereogram of Equipment Appearance
II.2: 3-D Stereogram of Inside Equipment
3:1 Bottom Positive Detection Method

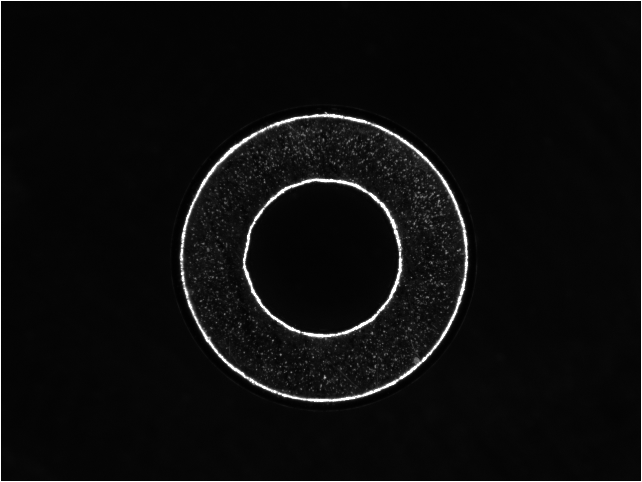

Bottom positive light detection effect original picture:
3:1 Bottom Positive Detection Method

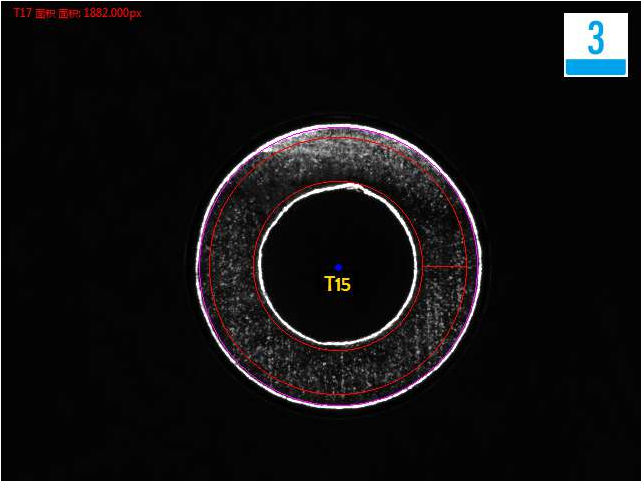

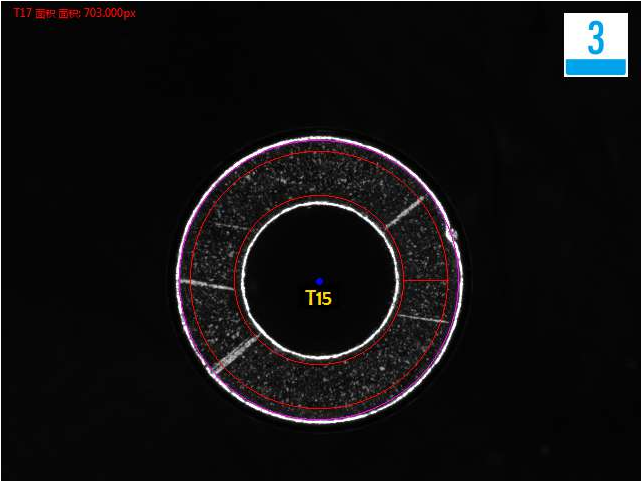

Bottom Positive Detection Knife Mark Bad Product Analysis Diagram:NG
3:1 Bottom Positive Detection Method

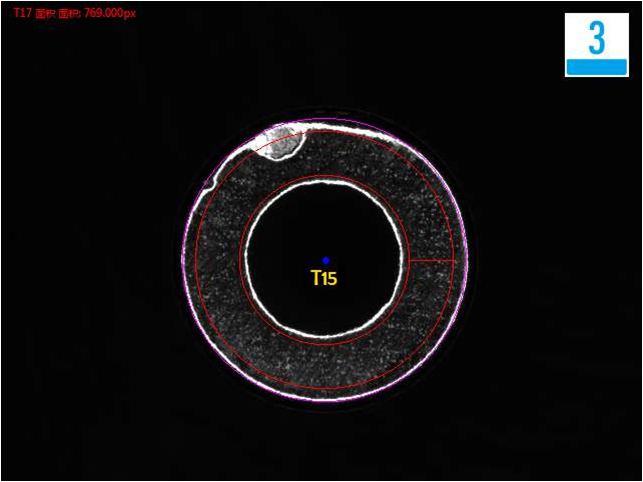

Bottom Positive Detection Edge Dropping Analysis Diagram:NG
3:1 Bottom Positive Detection Method

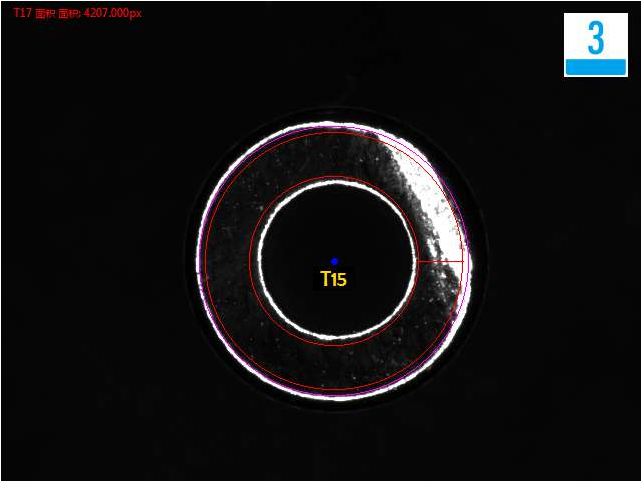

Bottom positive light detection slope defective product analysis chart:NG
3:1 Bottom Positive Detection Method

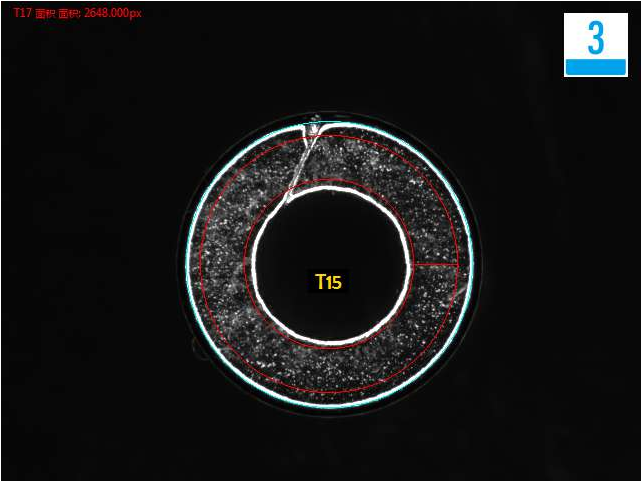

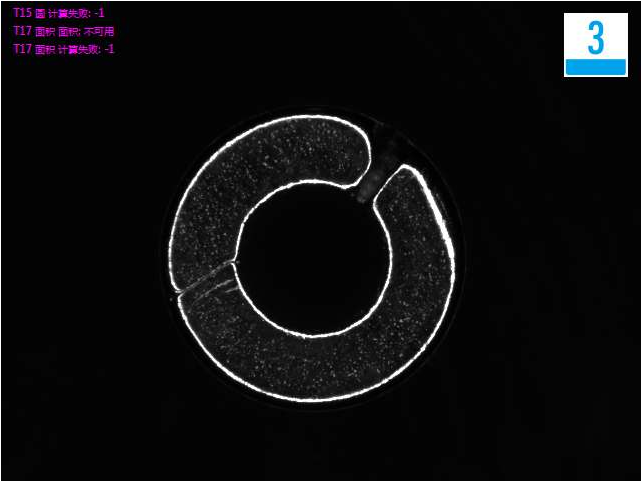

Bottom positive light detection cracking defective product analysis chart:NG
3:2 Side Backlight Detection Method

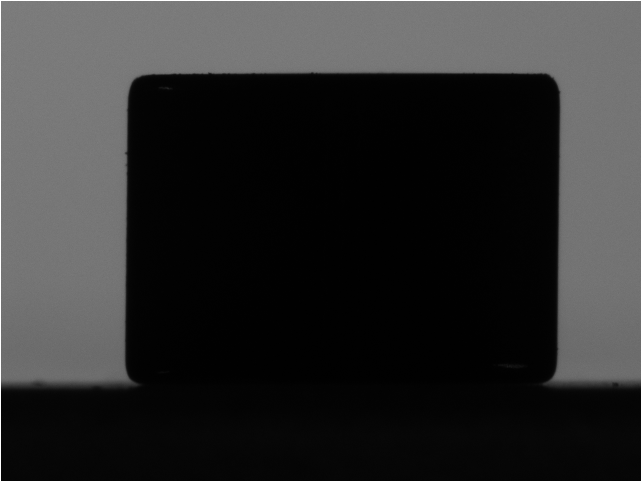

Side backlight detection effect original picture:
3:3 Top Positive Detection Method
Top orthotropic cracking defective product analysis chart:NG
3:3 Top Positive Detection Method
Top Positive Detection Edge Dropping Analysis Chart:NG
3:4 Top Backlight Detection Method

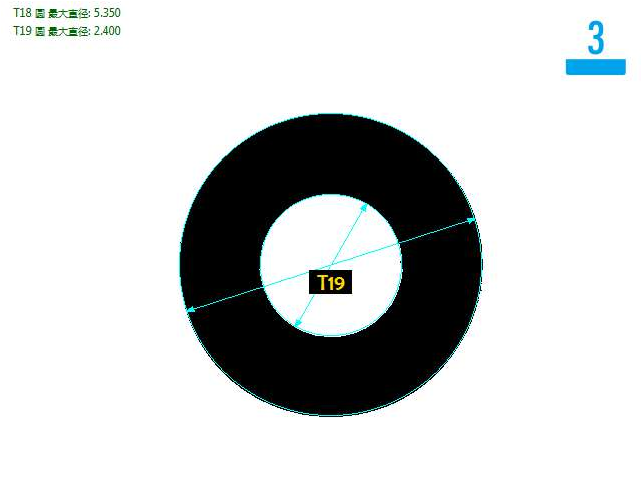

Top Backlight Detection Effect Analysis Chart: OK
IV. System Installation Requirements:
Inspection space for equipment placement: Separately installing SP visual inspection system at the pipeline side, it is necessary to ensure that there is enough space to install the equipment.
Ambient temperature: 0-50 degrees Celsius;
Air humidity: below 90% RH;
Electronic jamming: Provide equipment with less electronic jamming.
Power supply: 220V, 50Hz AC, less than 1KVA power consumption
Above is the machine vision inspection scheme for ring magnets. For more solutions, please consult Sputek and hotline 130 7781 5846.
